SKU:eat14032-010

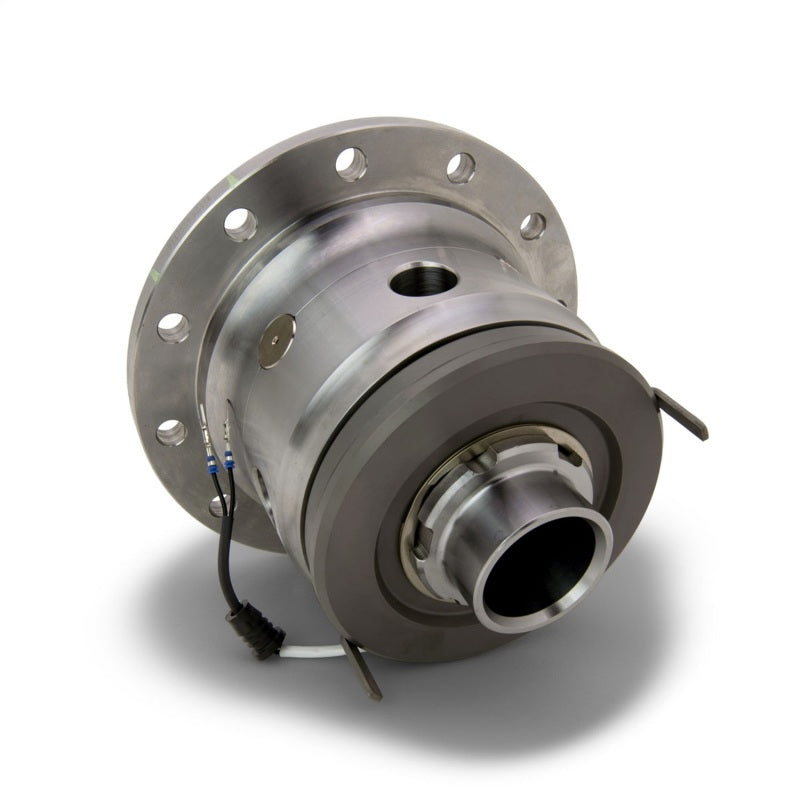

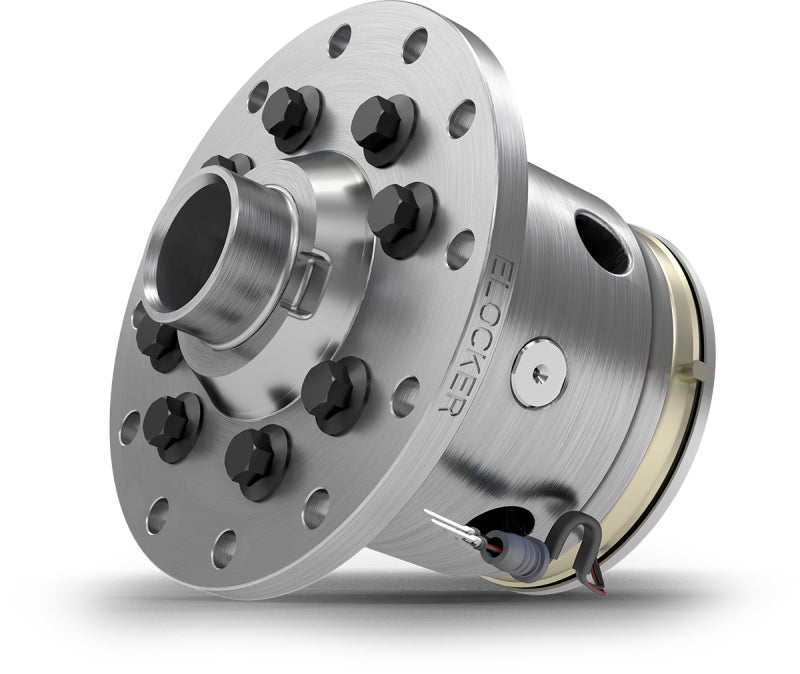

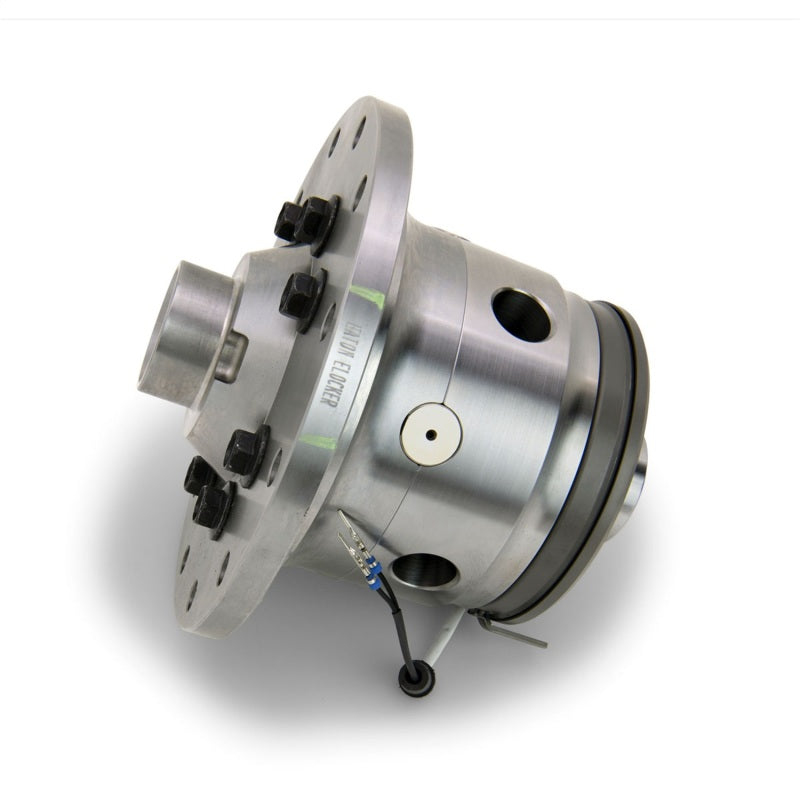

Eaton ELocker4 Differential Dana 70 35 Spline 4.10 & Down Ratio
Eaton ELocker4 Differential Dana 70 35 Spline 4.10 & Down Ratio
Product Info
Part #: eat14032-010
MFR Part #: 14032-010
Product Name: EAT ELocker4 Diffs
Description: Eaton ELocker4 Differential Dana 70 35 Spline 4.10 & Down Ratio
Availability: Special Order (Special Order)
Manufacturer Stock: 15
MAP: $1956.99
Retail: $2081.91
Catalog Date: 2021-04-06
The Eaton ELocker is an electronic, selectable differential designed for drivers that need traction on-demand. At the flip of a dash switch, drivers can go from open to 100-percent locked. A second flip of the switch deactivates the unit to resume normal driving. The direct acting mechanism activates in .14 second to provide 100% instant axle lock, and remains locked in both forward and reverse.
Features

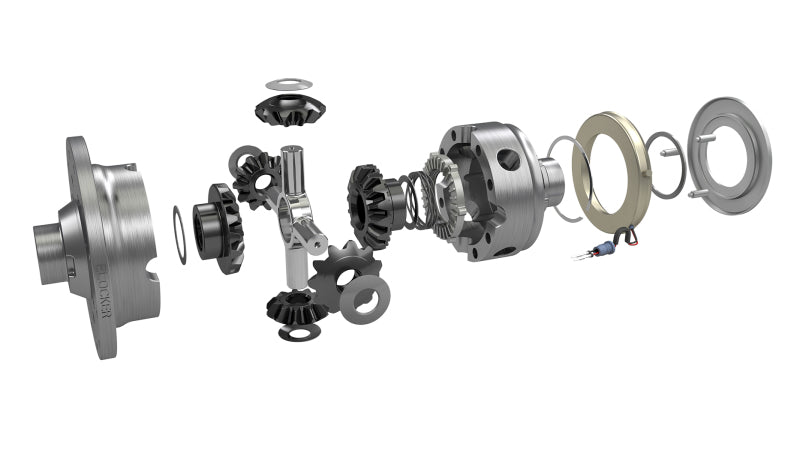

4-Pinion Net-Forged Gear Design For Max Strength And Durability
Eaton ELocker® Differential; Dana 70; 35 Spline; 1.50 in. Axle Shaft Diameter; 4.10 And Down Ring Gear Pinion Ratio; 10.5 in. Ring Gear Diameter;
Product Description - Short
Eaton ELocker4 Differential Dana 70 35 Spline 4.10 & Down Ratio
Product Description - Long
Eaton ELocker® Differential
Product Description - Short
Differential
