SKU:aem30-0334
AEM X-Series OBDII Wideband UEGO AFR Sensor Controller Gauge
AEM X-Series OBDII Wideband UEGO AFR Sensor Controller Gauge
Product Info
Part #: aem30-0334
MFR Part #: 30-0334
Product Name: AEM Digital Gauges
Description: AEM X-Series OBDII Wideband UEGO AFR Sensor Controller Gauge
Availability: In Stock (Immediate)
Warehouse Stock: 22 (4 NV | 16 PA | 2 TX)
MAP: $286.95
Retail: $322.95
Catalog Date: 2017-07-17
Additional wiring for a 0-5v or RS232 Serial output can be added by the user for outputting to a data logger. This OBDII pass-through capability replaces the traditional AEMnet stream available in the 30-0300 X-Series Wideband AFR Gauge Controller.OBDII CAN-bus OUTPUTThe OBDII output simulates an auxiliary ECU signal when plugged into a vehicle's OBD port, which requires a unique address from the other ECUs already on a vehicle's network.
Features
X-Series Wideband UEGO AFR Controllers Gauge were fastest responding wideband air/fuel ratio controllers in an independent test vs. 17 competitors wideband AFR controllers

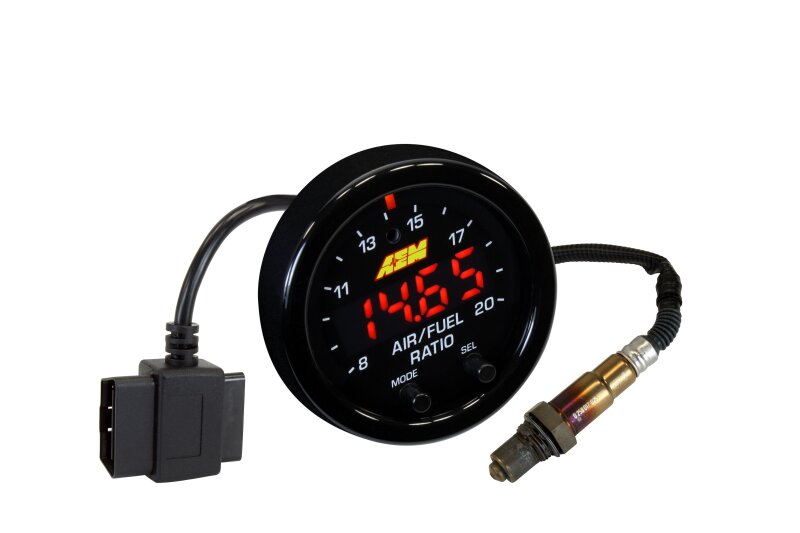

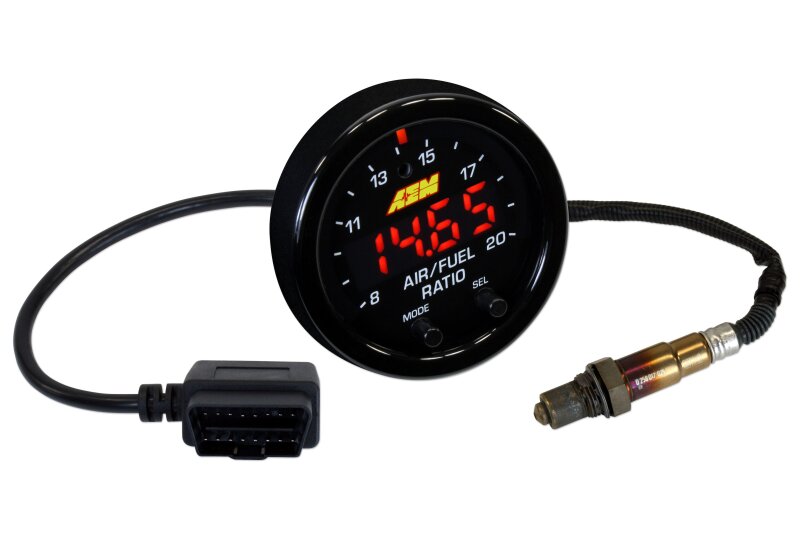

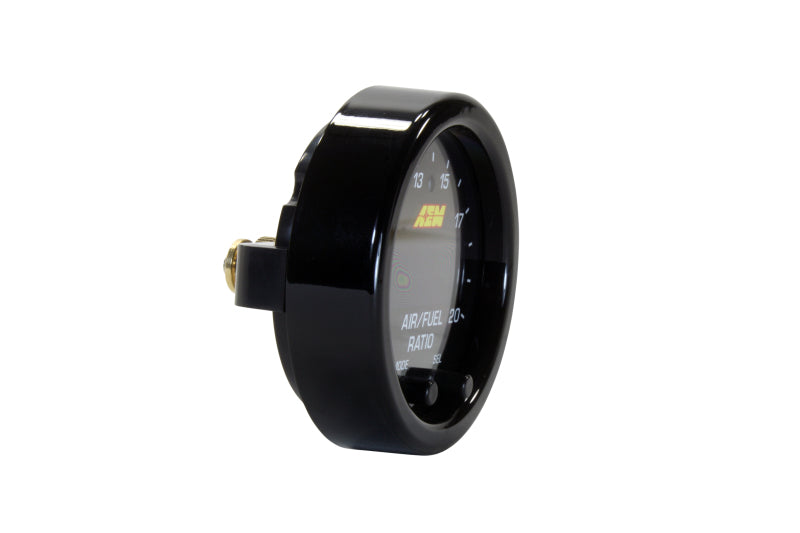

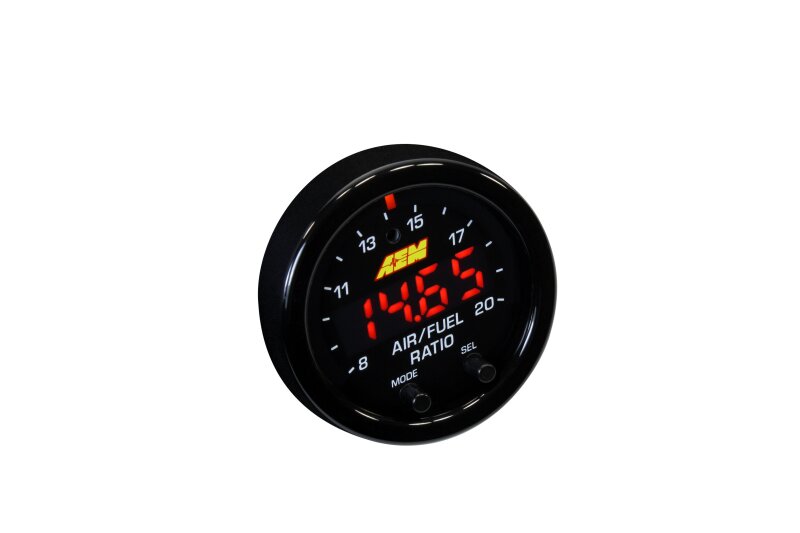

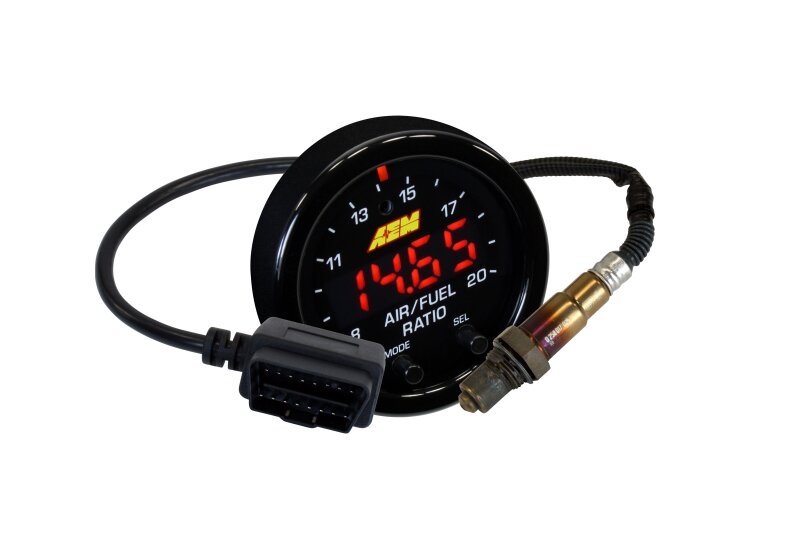

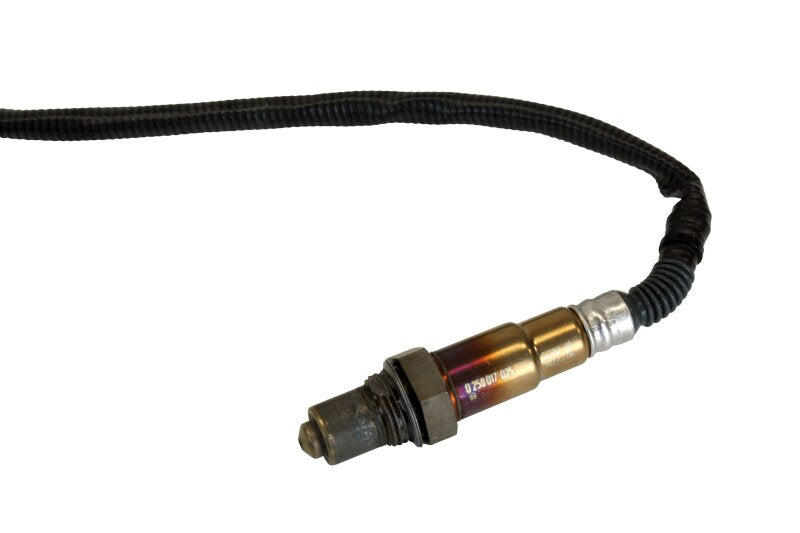

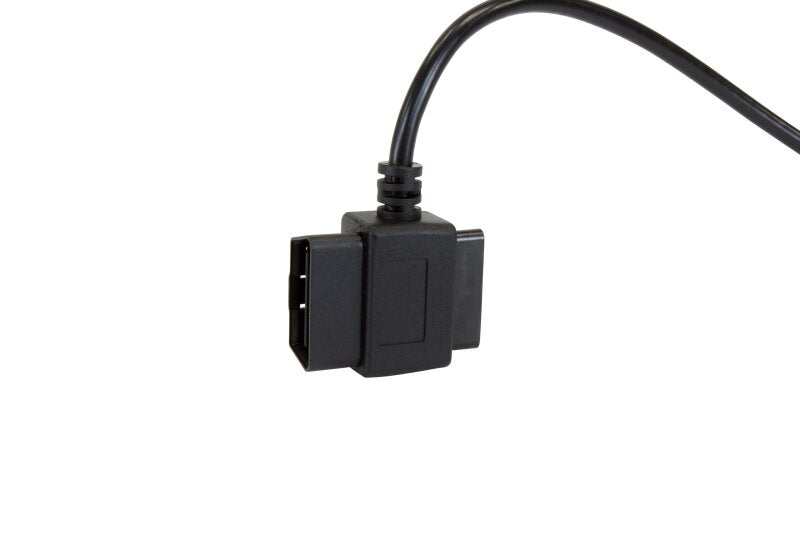

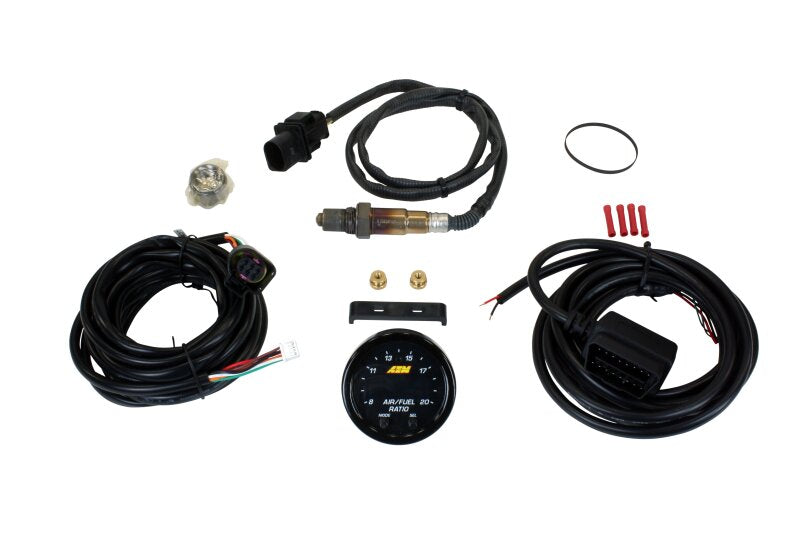

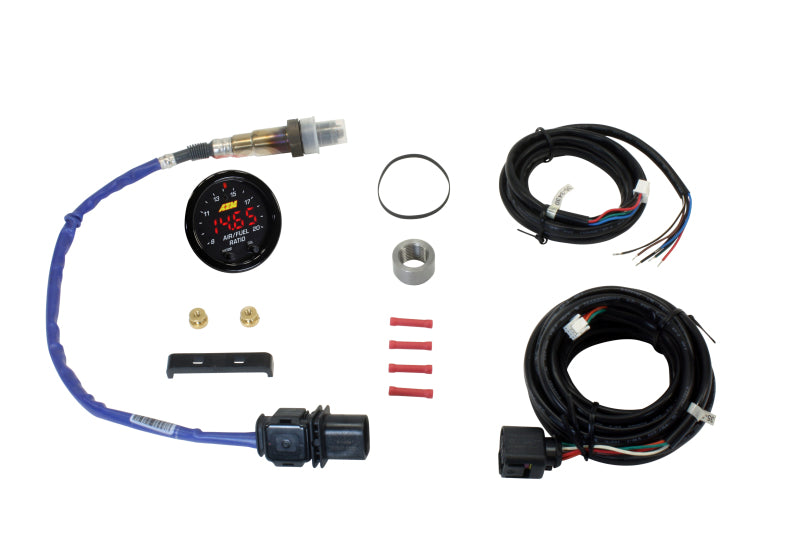

X-Series Wideband UEGO AFR Sensor Controller Gauge with OBDII Connectivity. Includes: X-Series Wideband Controller Gauge, Bosch LSU 4.9 Sensor, Wiring Harnesses, Black Bezel, Black AFR/Lambda Faceplate, OBD2 Cable & O2 Sensor Bung
Associated Comments
Accurate AFR data is critical when tuning an engine. Running rich (very low air/fuel ratio, excessive fuel) can cause a loss in power, while running too lean (very high air/fuel ratio, not enough fuel) may result in serious engine damage. Using a wideband air/fuel controller during the tuning process allows you to monitor AFR and adjust tuning parameters to optimize them for maximum power and efficiency. AEM has a comprehensive line of highly accurate, reliable wideband air/fuel controllers that can help ensure your vehicle is optimally tuned.
Associated Comments
** Wideband UEGO sensors are wear items and their lifespan is determined by many factors including contamination from leaded fuels, automotive fluids, particulates, mechanical or thermal shock and from being unheated and exposed to the exhaust stream. Free-air calibration may correct drift as a sensor ages, but it is recommended that they are replaced as part of your vehicle's maintenance program. When performing free-air calibration, please follow the procedure outlined in the instruction manual.
Product Description - Long
Accurate AFR data is critical when tuning an engine. Running rich (very low air/fuel ratio, excessive fuel) can cause a loss in power, while running too lean (very high air/fuel ratio, not enough fuel) may result in serious engine damage. Using a wideband air/fuel controller during the tuning process allows you to monitor AFR and adjust tuning parameters to optimize them for maximum power and efficiency. AEM has a comprehensive line of highly accurate, reliable wideband air/fuel controllers that
Associated Comments
X-Series Wideband Gauges and the X-Series Inline Controller support the popular 4.9LSU sensor and can utilize both the factory calibration resistor and free-air calibration methods. This allows users to take advantage of the precise factory resistor calibration when a sensor is new, but then allows for free-air calibrations if the user desires when the sensor ages.** It's the perfect marriage of simplicity and accuracy.
Associated Comments
* Independently tested at 360° Product Testing (results reported on August 31st, 2015) against 17 competitor wideband UEGO Air/Fuel Controllers. AEM X-Series Inline with 4.9LSU wideband sensor and AEM X-Series Wideband UEGO AFR Gauge with 4.9LSU sensor recorded the fastest response times.
Associated Comments
No. There is a laser-etched, calibrated resistor in the sensor's connector body. This resistor is specifically created for the exact sensor that it is attached to. Modifying this will invalidate the sensor's output.
Associated Comments
AEM's Wideband UEGO (Universal Exhaust Gas Oxygen, pronounced "You-Way-Go") Controllers are powerful, cost effective tuning tools that allow users to accurately monitor the Air/Fuel Ratio (AFR) of their engine.
Product Description - Long
X-Series AFR Gauge. Validated to work w/ EFILive, HPTuners and DashDaq software
Associated Comments
0-5V Output Gasoline values from 8.5:1 to 18.0:1 AFR (Requires Wiring)
Associated Comments
0-5V Output Methanol values from 3.75:1 to 8.0:1 AFR (Requires Wiring)
Associated Comments
0-5V Output Ethanol values from 5.2:1 to 11.0:1 AFR (Requires Wiring)
Associated Comments
0-5V Output E85 values from 5.7:1 to 12.0:1 AFR (Requires Wiring)
Associated Comments
FACTORY CALIBRATION RESISTOR OR FREE-AIR CAL, IT'S YOUR CHOICE!
Product Description - Short
AEM X-Series OBDII Wideband UEGO AFR Sensor Controller Gauge
Associated Comments
0-5V Output Lambda values from .58 to 1.23 (Requires Wiring)
Associated Comments
OBDII Output Gasoline values from 8.0:1 to 20.0:1 AFR
Associated Comments
Display Gasoline values from 8.0:1 to 20.0:1 AFR
Associated Comments
CAN I CHANGE THE AEM UEGO SENSOR'S CONNECTOR?
Associated Comments
WHAT IS A WIDEBAND UEGO AIR/FUEL CONTROLLER?
Associated Comments
OBDII Output Lambda values from .55 to 2.00
Product Description - Long
AEM X-Series OBDII Wideband AFR Gauge Kit
Associated Comments
WHY USE A WIDEBAND AIR/FUEL CONTROLLER?
Associated Comments
Display Lambda values from .55 to 2.00
Product Description - Invoice
X-SERIES WIDEBAND W/ OBD CAN
Product Description - Invoice
AEM - X-Series AFR Gauge
AAIA Part Type Description
Air / Fuel Ratio Gauge
Product Description - Short
X-Series AFR Gauge
Product Description - Short
X-Series OBDII AFR
Product Description - Abbreviated
AFR Gauge Ki
