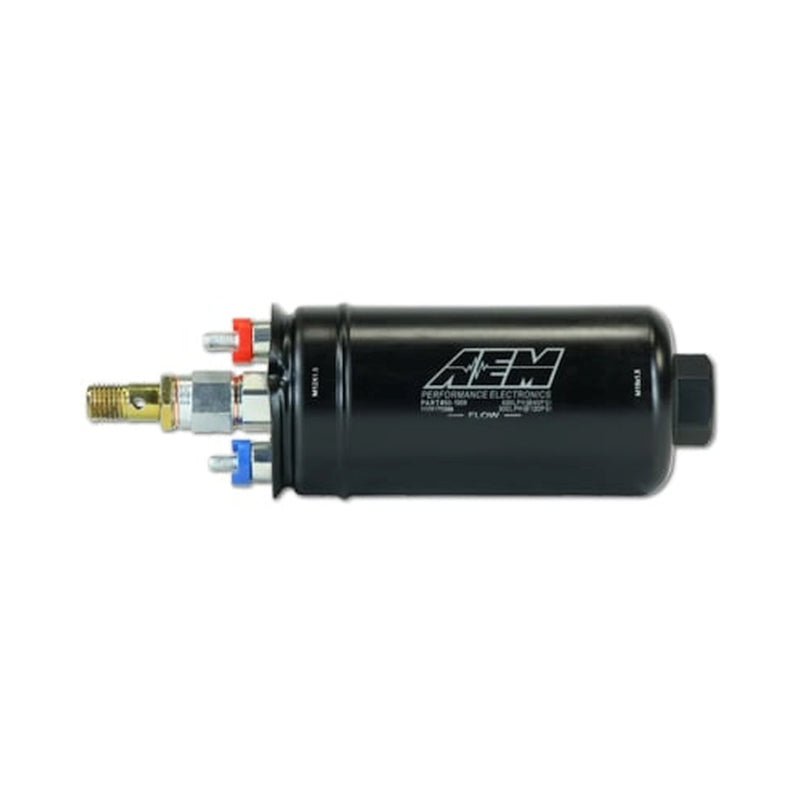

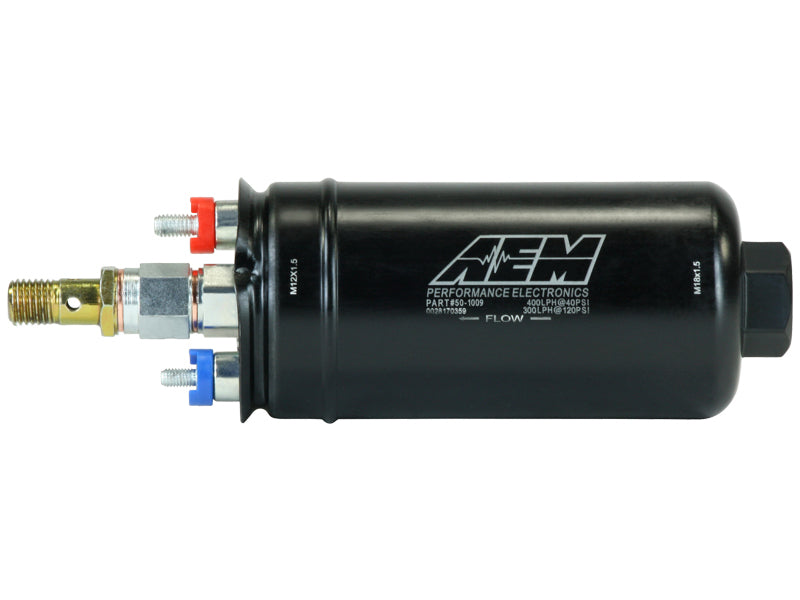

AEM 400LPH High Pressure Inline Fuel Pump - M18x1.5 Female Inlet to M12x1.5 Male Outlet

Name: AEM 400LPH High Pressure Inline Fuel Pump - M18x1.5 Female Inlet to M12x1.5 Male Outlet
Brand: AEM
SKU: aem50-1009
Price: 188.00 USD
Availability: InStock

$188.00 USD

~~$218.95 USD~~ $188.00 USD

Sale Sold out

Product Info

Part #: aem50-1009

MFR Part #: 50-1009

Product Name: AEM External Fuel Pumps

Description: AEM 400LPH High Pressure Inline Fuel Pump - M18x1.5 Female Inlet to M12x1.5 Male Outlet

Availability: In Stock (Immediate)

Warehouse Stock: 8 (3 NV | 2 PA | 2 TX | 1 IN)

MAP: $193.95

Retail: $218.95

Catalog Date: 2017-10-24

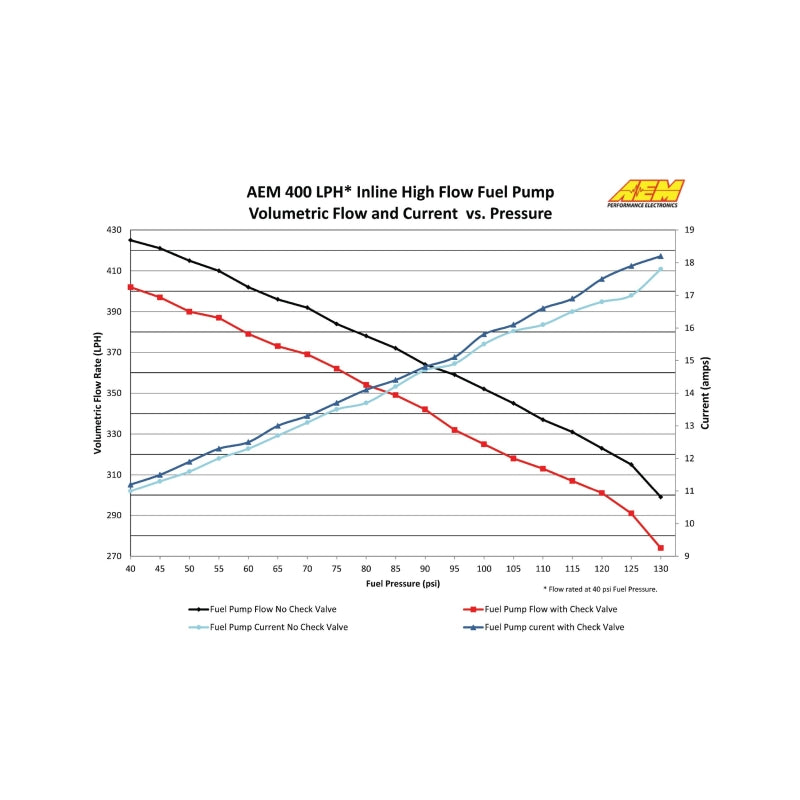

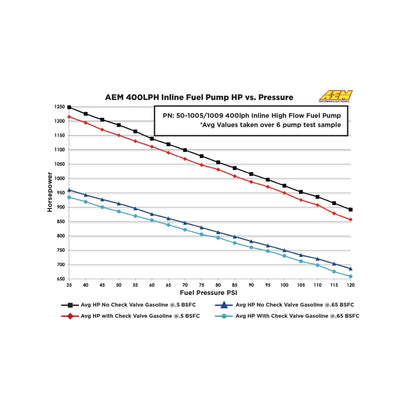

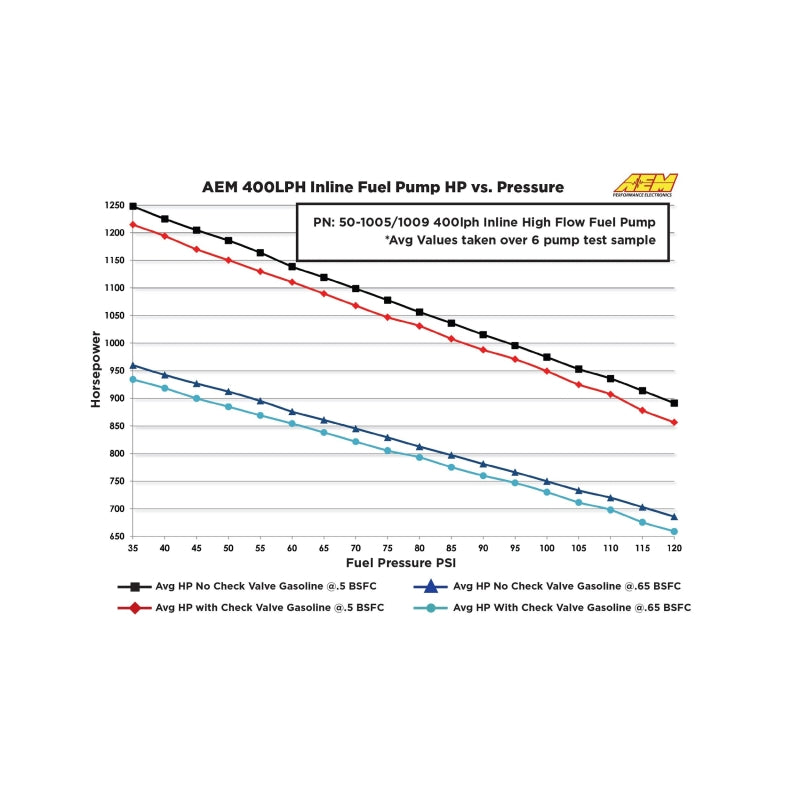

AEM's 400LPH High Flow, High-Pressure Fuel Pump (AEM 50-1005) is capable of supporting over 1,200 HP normally aspirated and a whopping 860 HP at 30 psi boost!* It flows 400LPH (100 gph) at 40 PSI, 340LPH (90 gph) at 73 PSI, and 270LPH (71 gph) at 120 PSI. Complete flow curves from 35 to 120 PSI and current draw vs. fuel pressure charts are available in the Specs tab.

Features

Compatible with Flex Fuel (E85/E90) and all types of gasoline (100% Alcohol fuels may diminish fuel pump life)

400lph Inline High Flow Fuel Pump. 400LPH@40psi, 300LPH@120psi. M18x1.5 Inlet & M12x1.5 Outlet. Includes Fuel Pump, installation instructions, check valve fitting, wiring terminal ends/covers/nuts.

Associated Comments

Although AEM's High Flow Fuel Pumps are the same physical size as many OEM fuel pumps, they may not be appropriate for a specific application. You can consult the Vehicle Search function on our website to see whether a pump is recommended for your vehicle. The Vehicle Search function should be used as a reference only. It is imperative that you check the fuel pump sizing for your vehicle before purchasing an AEM High Flow Fuel Pump.

Associated Comments

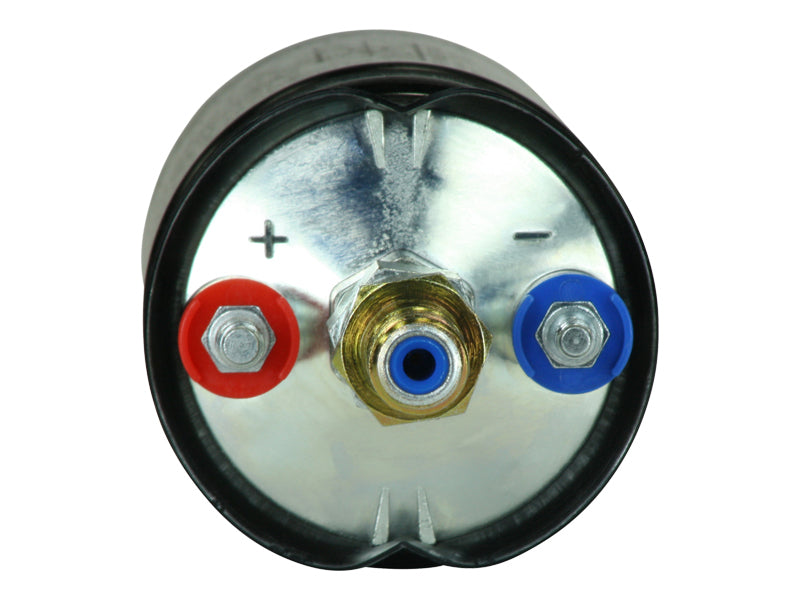

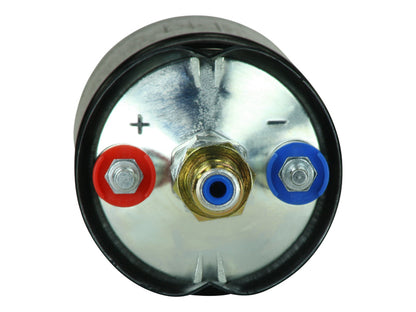

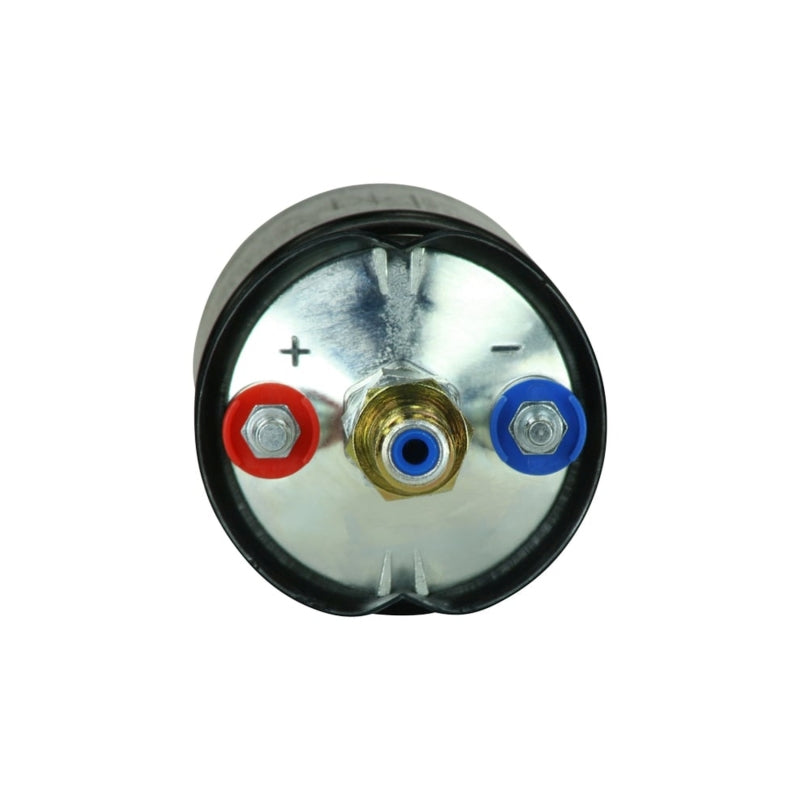

VOLTAGE SPECS: Connector Terminal: 6mm stud positive, 5mm stud negative Min Voltage Input: 10 volts Max Voltage Input: 18 volts Current Draw (40 psi): 9.73 amps no check valve, 10.68 amps with check valve (13.5v) Current Draw (120 psi): 16.07 amps no check valve, 17.13 amps with check valve (13.5v) Fuse: 25 amps (13.5v)

Associated Comments

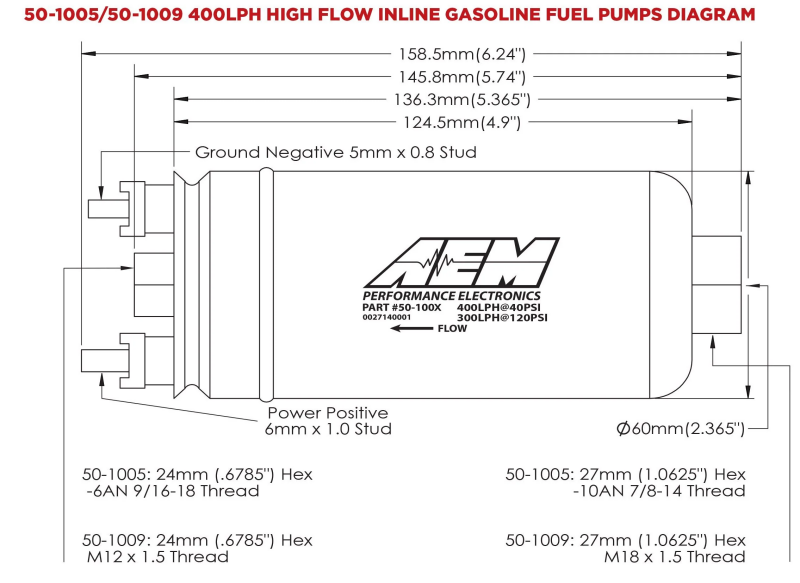

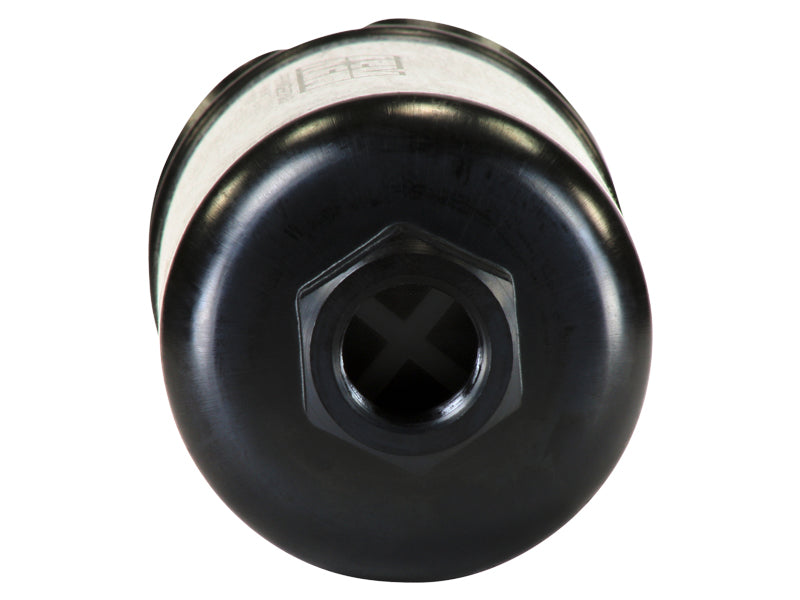

TECHNICAL SPECS: Weight: 35.8oz (1015 grams) Outside Diameter: 60mm OD External Materials: Black plated steel with laser etching, with zamac discharge end cap Inlet Fitting: -10AN 7/8"-14 Female Outlet Fitting: -6AN 9/16"-18 Female PRV Activation: 150 PSI Impeller Design: Roller vane with ceramic end plate

Associated Comments

Your vehicle's factory fuel pump wiring may not be adequate enough to handle the current draw of AEM's High Flow Fuel Pump. Please refer to the Electrical Requirements section in the instructions document for proper wiring. You can download a copy of the instructions below.

Associated Comments

* Power rating given at 43 PSI, 13.5v at the pump terminal with a BSFC of .5. Flow capability for horsepower support is ultimately dependent on fuel hose diameter, and system electrical voltage and amperage capabilities.

Associated Comments

AEM does not condone or approve of the modification of a tank to accommodate a High Flow Fuel Pump and cannot guarantee the pump's performance or operation if any modifications are made.
